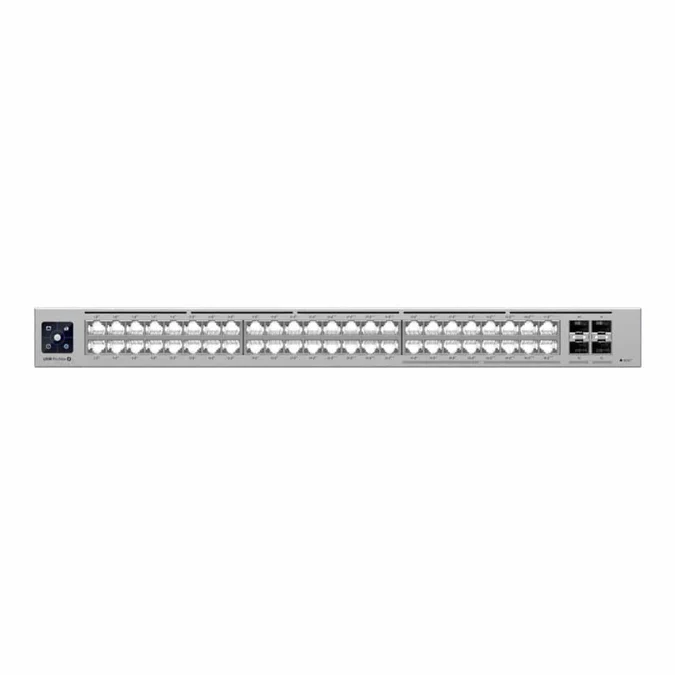

Ubiquiti Pro Max 48-port PoE GbE Managed Switch with 4x SFP+ Ports USW-PRO-MAX-48-POE Features Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network* 16x 2.5 GbE ports including 8x PoE+ and 8x PoE++ 32x GbE ports including 24x PoE+ and 8x PoE++ 4x 10G SFP+ ports DC power backup ready 720W total PoE availability Managed with UniFi Network 8.0.24 and later
Management interface: Ethernet In-Band Networking interface 32x GbE RJ45 ports 16x 1/2.5 GbE RJ45 ports 4x 10G SFP+ ports PoE interface 32x PoE/PoE+ (Pins 1, 2+; 3, 6-) 16x 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) Total non-blocking throughput: 112 Gbps Switching capacity: 224 Gbps Forwarding rate: 166.656 Mpps Power method 1x Universal input, 100—240V AC, 50/60 Hz 1x USP-RPS DC input Power supply: AC/DC, internal, 820W Supported voltage range: 100—240V AC Max. power consumption: 100W (Excluding PoE output) Total available PoE: 720W Max. PoE wattage per port by PSE PoE: 15.4W PoE+: 30W PoE++: 60W Voltage range PoE mode PoE: 44—57V PoE+: 50—57V LCM display: 1x 1.3" touchscreen Etherlighting Ethernet Locating Speed/link Native VLAN/network SFP+ Locating Speed/link Native VLAN/network
