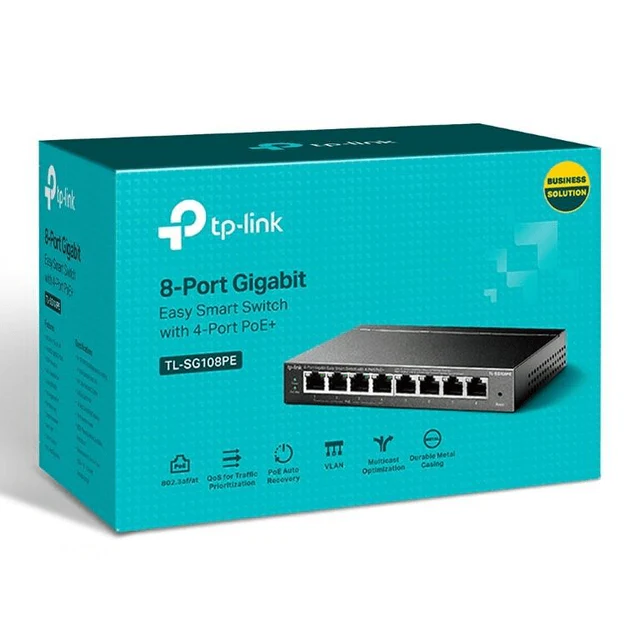

TP-Link 8-port Gigabit Easy Smart Switch with 4-port PoE+ TL-SG108PE The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV. Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses.
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Features Eight 10/100/1000Mbps RJ45 ports Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable Supports PoE power up to 64 W for all PoE ports* Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery Simple network set-up on top of plug-and-play connectivity Web-based user interface and Easy Smart Configuration Utility simplify configuration Fanless design lowers energy consumption and eliminates operating noise Technical Specification Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at Interface: 8x 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity: Fanless Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A) PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 64W Switching Capacity: 16 Gbps Packet Forwarding Rate: 11.9 Mpps MAC Address Table: 4 K Packet Buffer Memory: 1.5 Mb Jumbo Frame: 16 KB Package Contents: TL-SG108PE Power Adapter Installation Guide Rubber Feet
