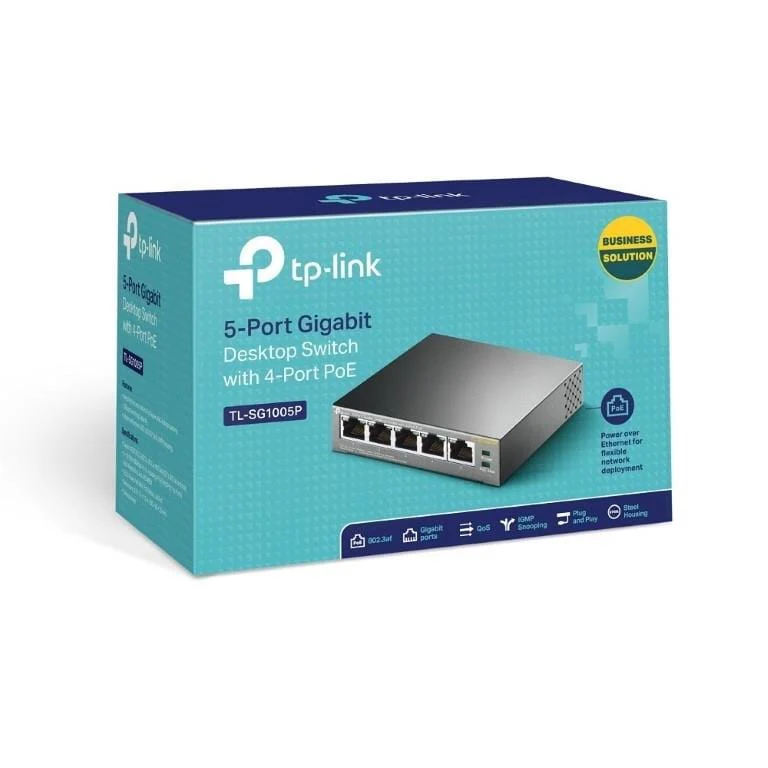

TP-Link TL-SG1005P 5-port GbE Unmanaged Desktop Switch with 4x PoE+ ports Features 5x 10/100/1000 Mbps RJ45 ports With four PoE+ ports, transfers data and power on one single cable Works with IEEE 802.3af/at compliant PDs 802.1p/DSCP QoS enable smooth latency-sensitive traffic Supports PoE Power up to 30 W for each PoE port Supports PoE Power up to 65 W for all PoE ports* Up to 250m data and power transmitting range under Extend Mode** PoE Auto Recovery guarantees stable operation of PoE devic
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) PoE Auto Recovery (Ports 1-4) Technical Specification Product: TP-Link TL-SG1005P 5-port GbE Unmanaged Desktop Switch Interface 5x 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity: Fanless External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 1.31 A) Packet Forwarding RateL 7.44 Mpps PoE Ports (RJ45) Standard: 802.3 af/at compliant PoE Ports: Ports 1–4 Power Supply: 65 W Mac Address Table: 2K Jumbo Frame: 16 KB Switching Capacity: 10 Gbps Package Contents TL-SG1005P Power Adapter Installation Guide
