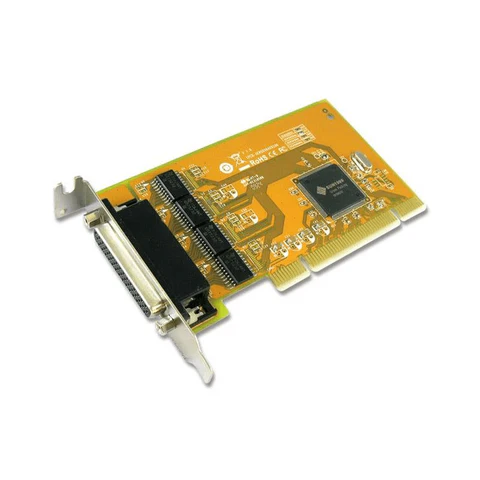

SUNIX SER5056AL, Universal PCI serial communication board, allows users to add or expand four RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5056AL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUN
Expands 4 independent RS-232 serial port with communication speeds up to 115.2Kbps High reliability SUN1999 16C950 compatible UART controller on-board Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power On-chip hardware auto flow control to guarantee no data loss Built-in ± 2KV ESD protection for all serial signals Plug-n-Play, I/O address and IRQ assigned by BIOS Low profile bracket design idea for slim or portable PC Support Microsoft Windows, Linux, and DOS Specifications Brand: SUNIX Product: SUNIX SER5056AL Serial Board Host interface: PCI Output interface: Serial Expansion card form factor: Low-profile Product colour: Orange Purpose: PC Certification: CE, FCC
