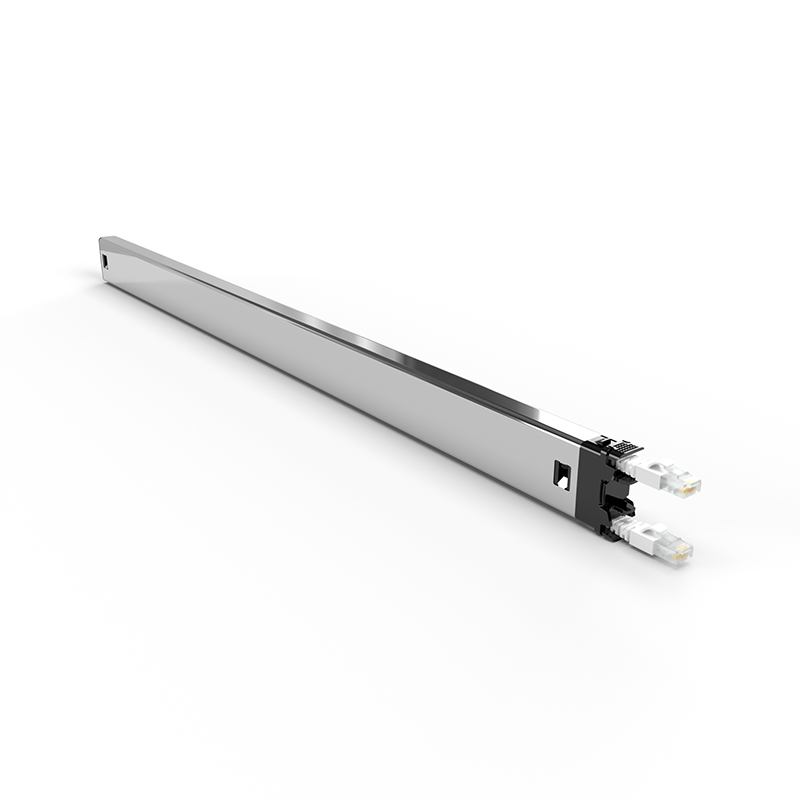

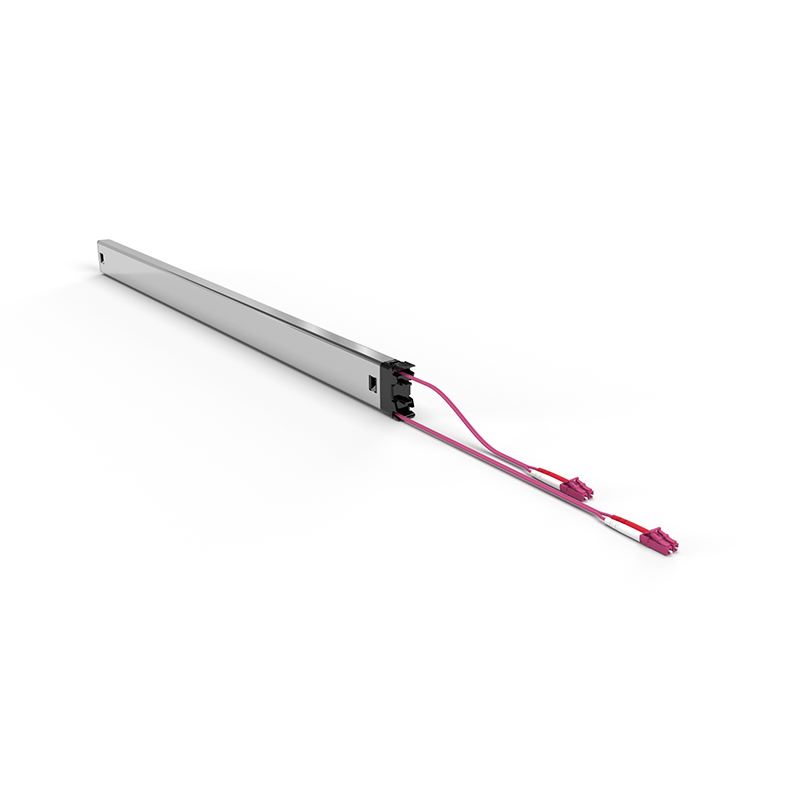

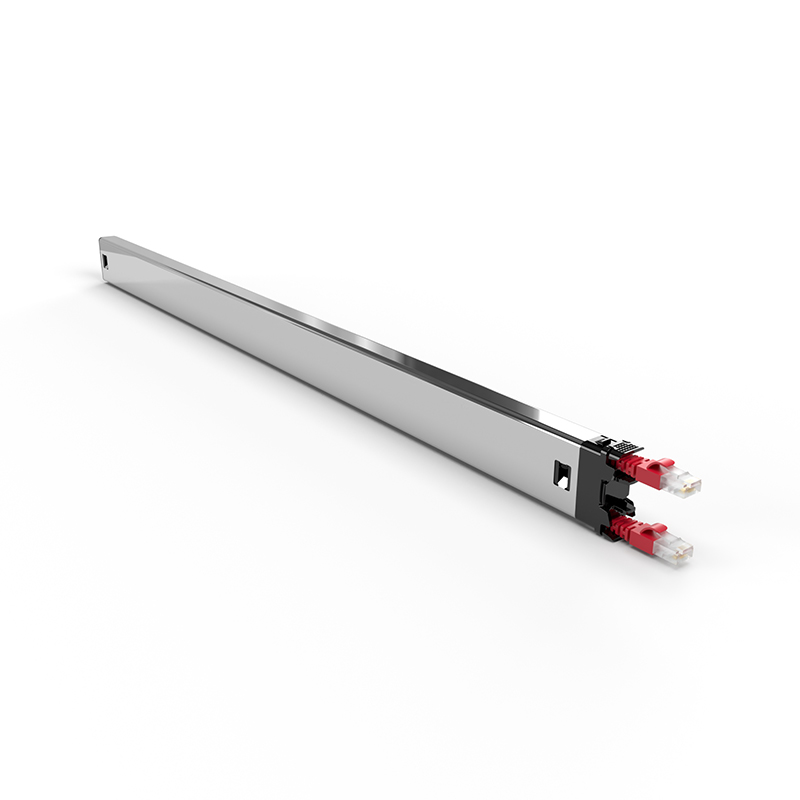

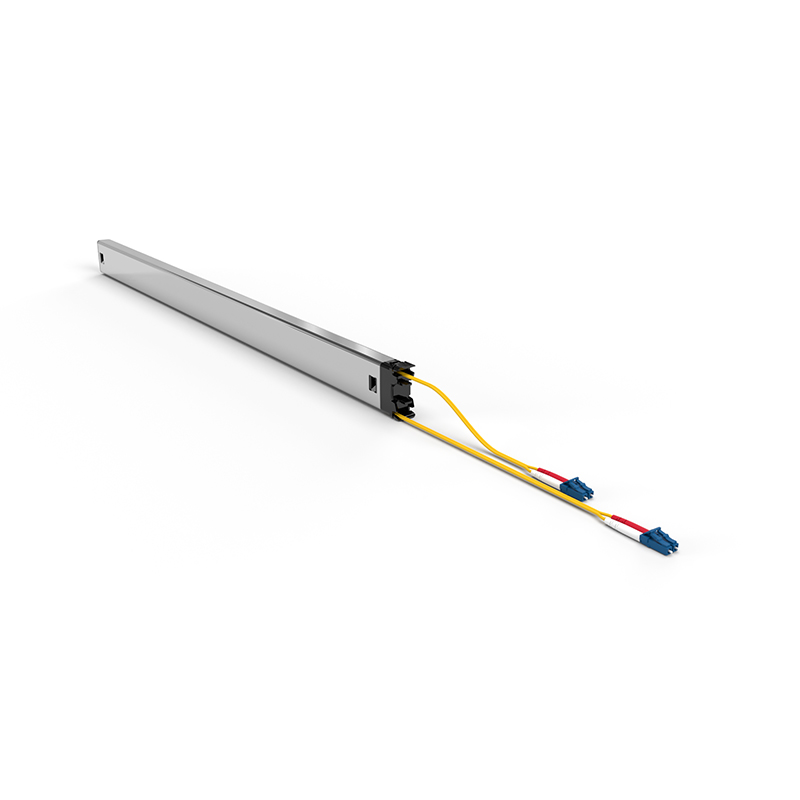

Construa o seu próprio PATCHBOX com vários tipos de cabos e cores à sua escolha! A estrutura PATCHBOX oferece espaço para 24 cassetes de cabos. O cabo plano Cat. 6a dentro do PATCHBOX Cassette Plus+ tem 70,87 polegadas de comprimento e cobre até 30RU, o PATCHBOX Cassette Plus+ Long Range tem 98,43 polegadas de comprimento e cobre até 46RU. Pode decidir entre blindagem UTP e STP e oito cores de cabos diferentes para uma melhor visão geral.
STP Cable: Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant UTP Cable: Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60 W)), RoHS compliant Connector: RJ45 shielded plug, pins gold plated, snagless booted Cable length: Plus+: 70.87″ cover 30RU; Plus+ Long Range: 98.43″ cover 46RU: 70.87″ extractable + 27.56″ overlength non-retractable Cassette Profiles: Stainless steel, laser-welded Plastic Parts: Polyoxymethylene POM Operating Temperature Range: -4°F — 140°F Ambient Humidity Non-Condensing: 10% – 90% Gross Weight: Plus+: 0.88lbs; Plus+ Long Range: 0.93lbs Packaging Dimensions: 27.17″ x 1.97″ x 1.97″ WxDxH HS-Code: 8544 4210 1 x PATCHBOX Plus+ STP / UTP Cassette with Cat.6a cable; PATCHBOX Plus+ STP / UTP Long Range Cassette with Cat.6a cable
