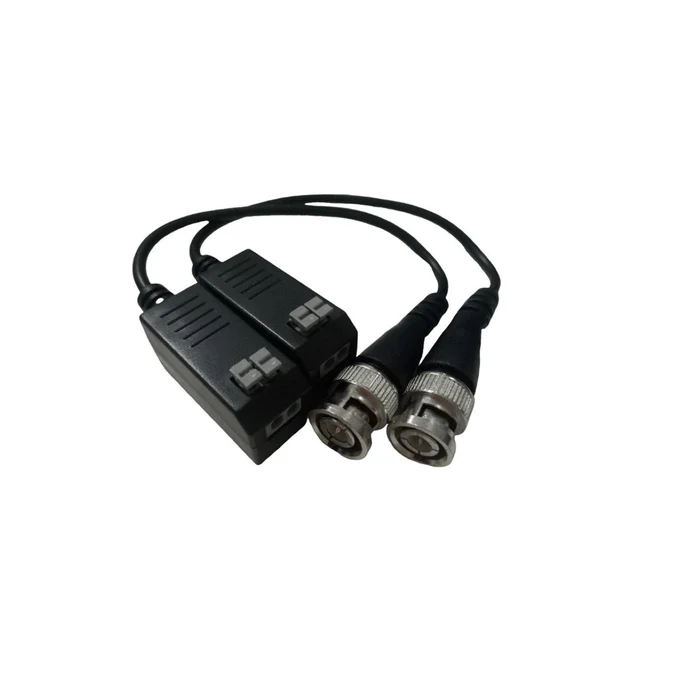

Dahua 1-ch Passive HDCVI Balun PFM800-E Features Real-time transmission over UTP CAT5E/6 cable. Passive, no need for power supply. With female BNC connector, and pluggable screw terminal connections
Transmission Signal: 1 channel Transmission Distance: HDCVI 720P: max.400m(1312.34ft); 1080P: max.250m(820.21ft) Category Type: UTP CAT 5E/6 Coaxial Video Connector: BNC-M Twisted-pair Video Connector: Push-terminal Compatible Format: HDCVI/AHD/TVI/CVBS Resolution: 720P/1080P Anti-interference: ＞60db ESD: 1a contact discharge electricity level 3 ; 1b air discharge electricity level 3 ; Per: IEC61000-4-2 Coaxial Cable Connector: 2KV(common-code) Per: IEC1000-4-5 UTP Cable Connector: 2KV(different-code), 4KV(common-code), Per: IEC1000-4-5 BNC Male: 75 ohms UTP Cable: 100 ohms
