Informações do Produto

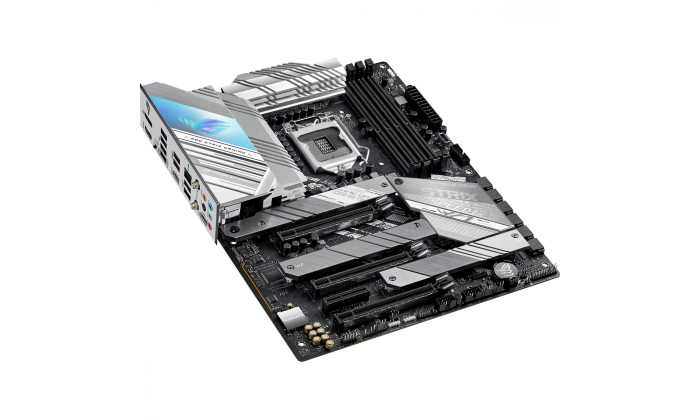

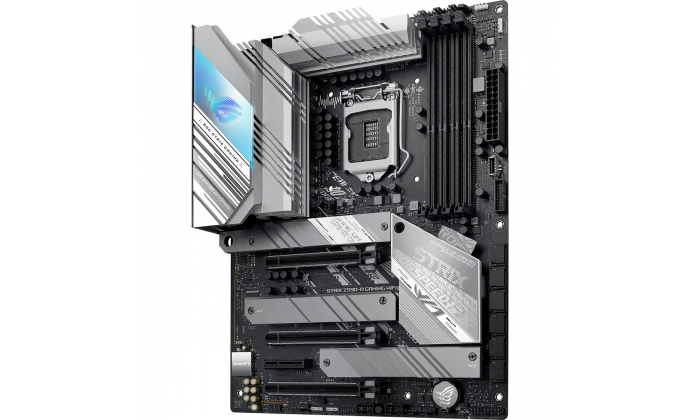

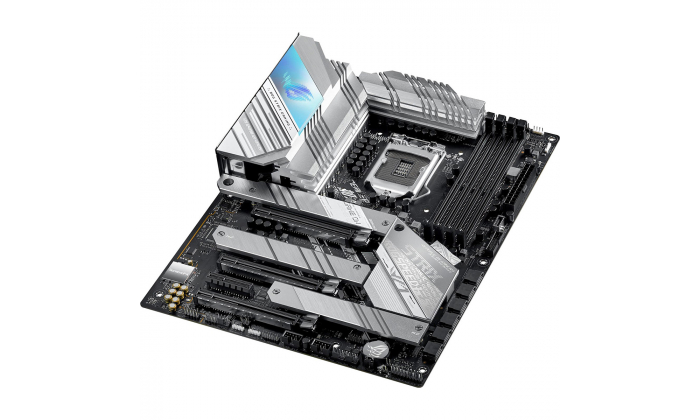

Motherboard Intel® Z590 LGA 1200 ATX com PCIe 4.0, 14 + 2 estágios de energia agrupados, cancelamento de ruído AI bidirecional, Overclocking AI, refrigeração AI, Rede AI, WiFi 6 (802.11ax), Ethernet Intel® 2.5 Gb, três M.2 slots com dissipadores de calor, USB 3.2 Gen 2x2 USB Type-C®, iluminação SATA e Aura Sync RGB. ESPECIFICAÇÕES Processador: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Suporta Intel® 14 nm CPU Suporta Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** Chipset: Intel® Z590 Chipset Memória RAM: 4 x DIMM (Dual Channel Memory Architecture) Max Memory Size: 128GB DDR4 5333(OC)5133(OC)/5000(OC)/4800(OC)/4600(OC)/4500(OC)/4400(OC)/4267(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II Gráficos 1 x DisplayPort 1.4 1 x HDMI 2.0 Slots de Expansão: 3 x PCIe 4.0/3.0 x16 (x16, x8/x4/x4) Intel® 11th &10th Gen Processors 3 x PCIe 4.0/3.0 x16 slot(s) Intel® 11th processors support PCIe 4.0 x16 or x8/x4/x4 mode(s) Intel® 10th processors support PCIe 3.0 x16 or x8/x4/x4 mode(s) Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot Armazenamento: Suporta 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 Intel® Z590 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** 6 x SATA 6Gb/s ports Ethernet: 1 x Intel® I225-V 2.5Gb Ethernet Áudio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Portas USB: Traseiras: Total 10 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A + 1 x USB Type-C®) Frontais: Total 7 1 x USB 3.2 Gen 1 connector(s) (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Conectores I/O: 1 x Thunderbolt 4 header Ventoinhas e Cooles 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header ENERGIA 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector ARMAZENAMENTO 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports MIX 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x TPM-M header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header 1 x S/PDIF out header Portas Painel Traseiro: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 5 x USB 2.0 port(s) (4 x Type-A, 1 x Audio USB Type-C®) 1 x HDMI™ port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack™ button
