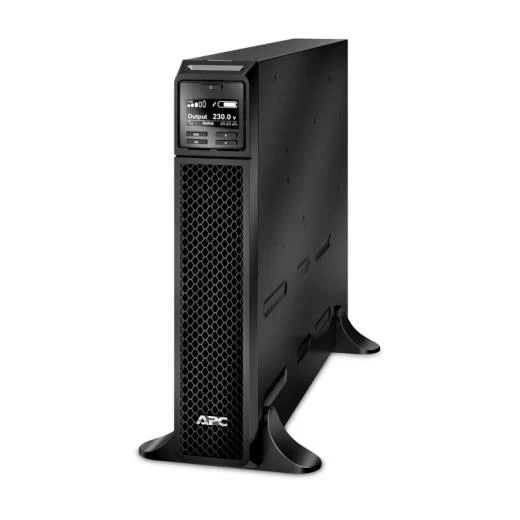

APC Smart-UPS SRT 3000VA 230V Features This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 3000VA/2700W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rack/tower convertible SRT is external battery compatible for more runtime during prolonged outages.
